Spa-Bench: A Real-Robot Benchmark for Spatial Grounding in Vision-Language-Action Models

Spatial grounding involves interpreting language about object attributes, spatial relationships, and scene organization in the current workspace to identify the intended target and desired outcome. Spa-Bench tests whether policies that can execute the required manipulation under a direct instruction can also determine the correct response from a spatial instruction.

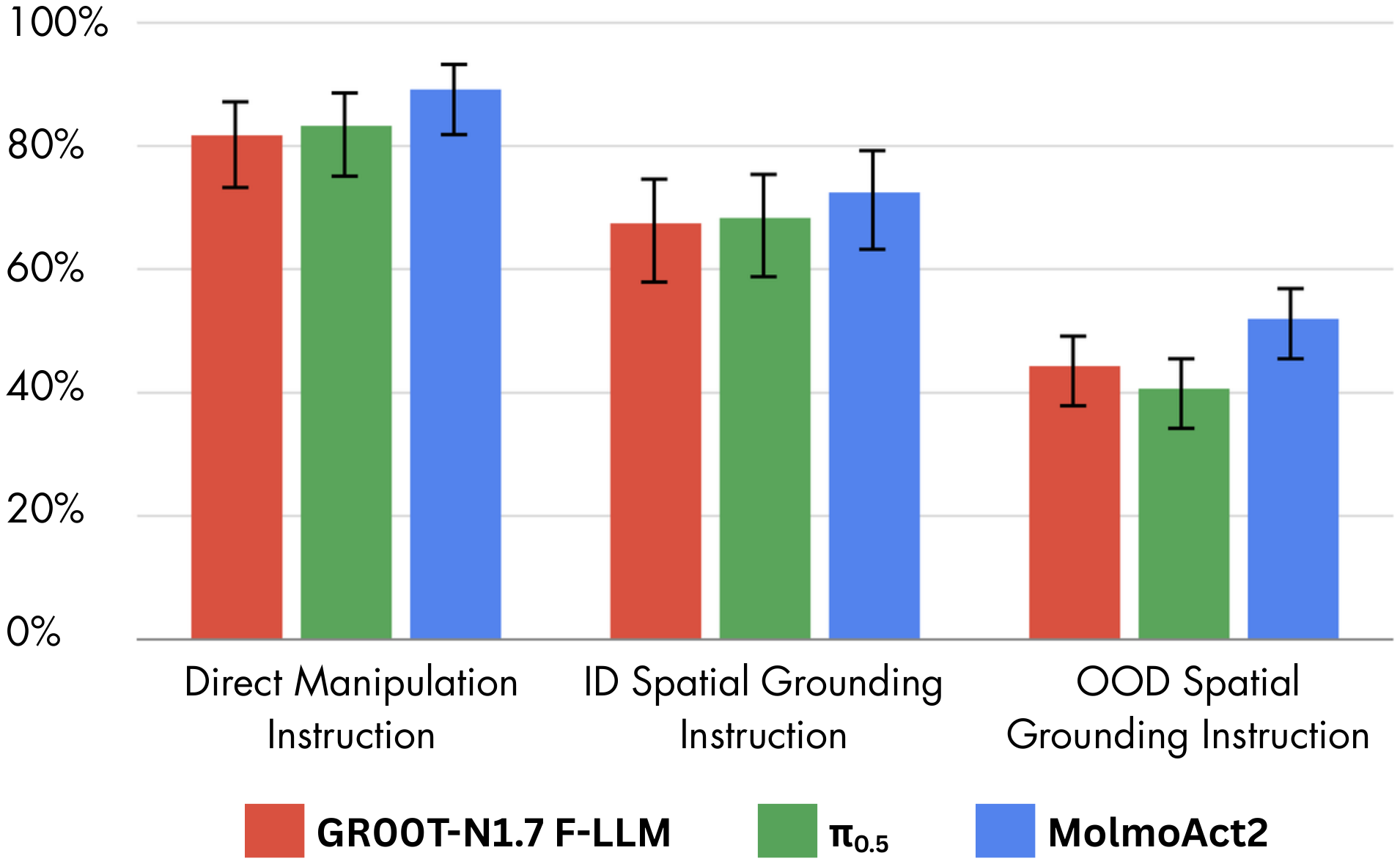

Direct instructions name the target explicitly. In-distribution (ID) spatial instructions use combinations seen in spatial training; out-of-distribution (OOD) spatial instructions require new combinations of familiar concepts and objects. Across the three fully evaluated policies, aggregate success is highest with direct instructions, lower with ID spatial instructions, and lowest with OOD spatial instructions.

When a robot fails to follow a spatial instruction, the difficulty may lie in interpreting the scene or executing the manipulation. To distinguish these, Spa-Bench repeats the same scene, intended target, and required motion with two instruction types: one identifies the target through a spatial description, while the other names it directly.

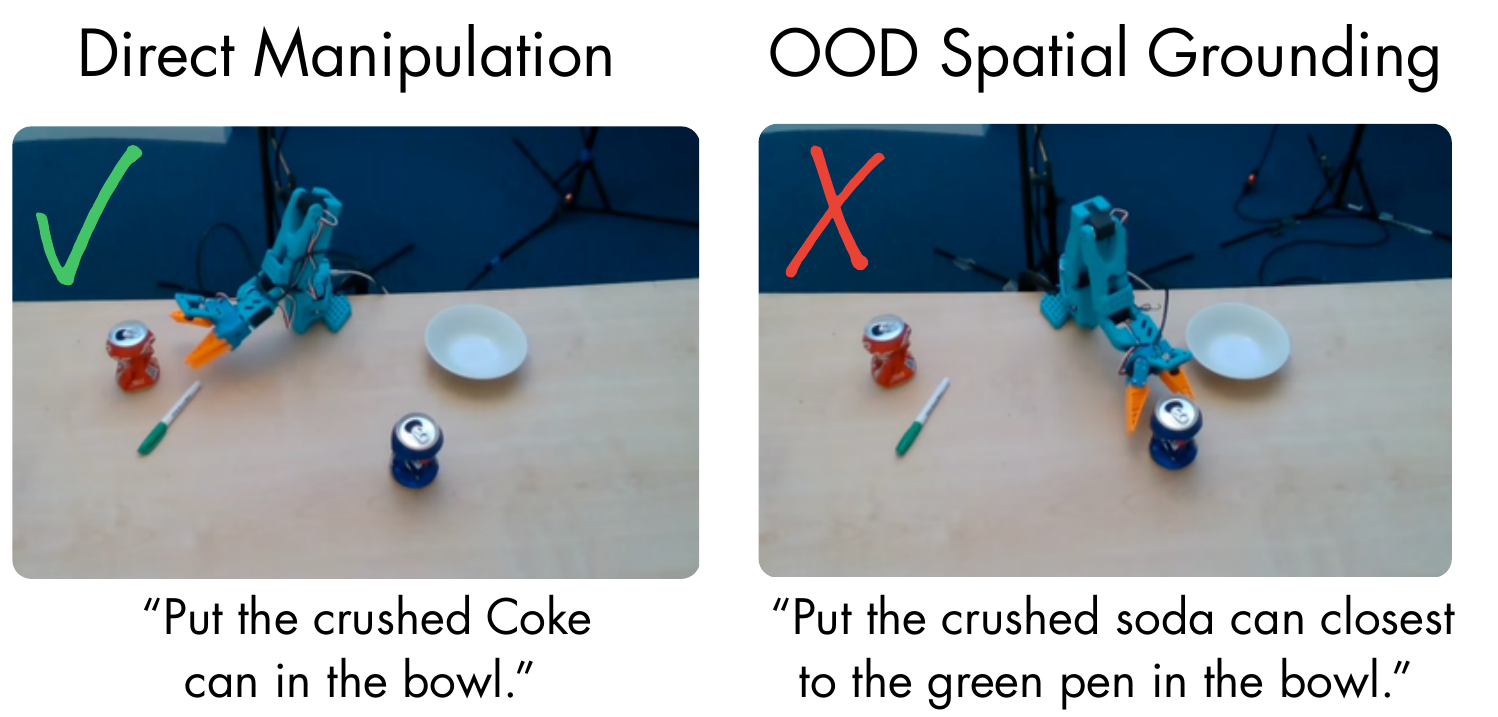

The figure illustrates this comparison. Both rollouts require moving the crushed Coke can into the bowl. Directly naming the Coke can leads to success; asking for the crushed soda can closest to the green pen leads the policy to select the wrong can and fail.

This reflects a broader pattern across 120 matched scenes per policy. Success ranges from 81.7–89.2% when the target is named directly, but falls to 41.7–60.8% when the same scenes require spatial grounding. The models can often execute the manipulation, yet struggle to determine what the spatial instruction requires.

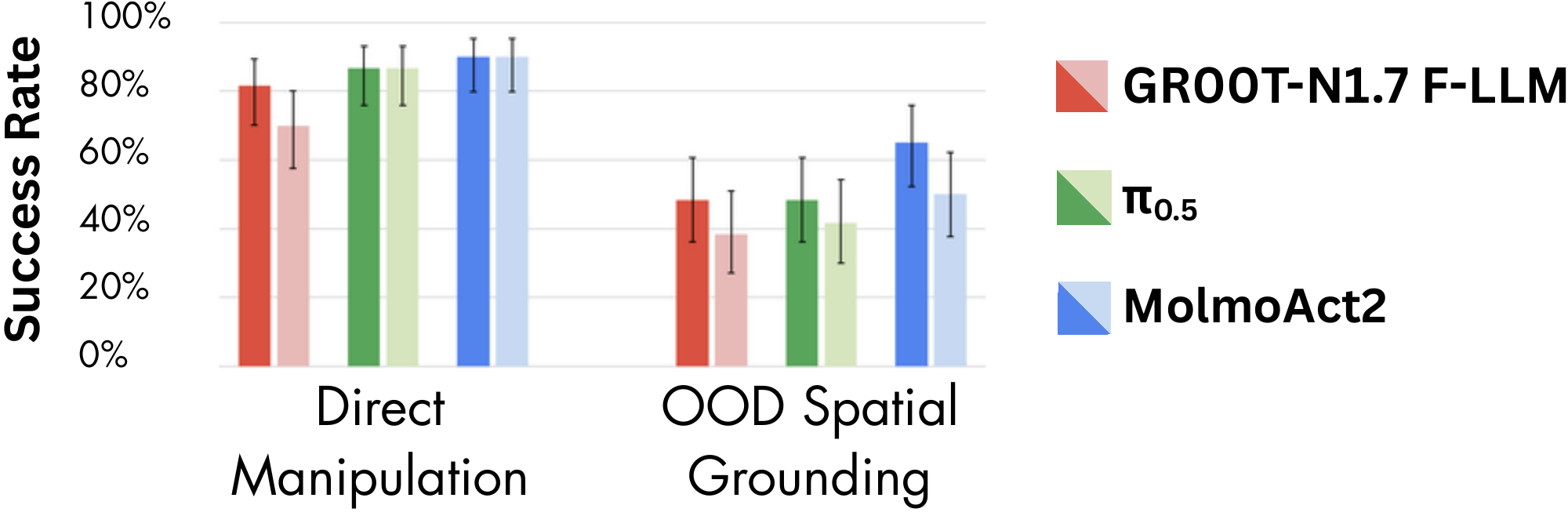

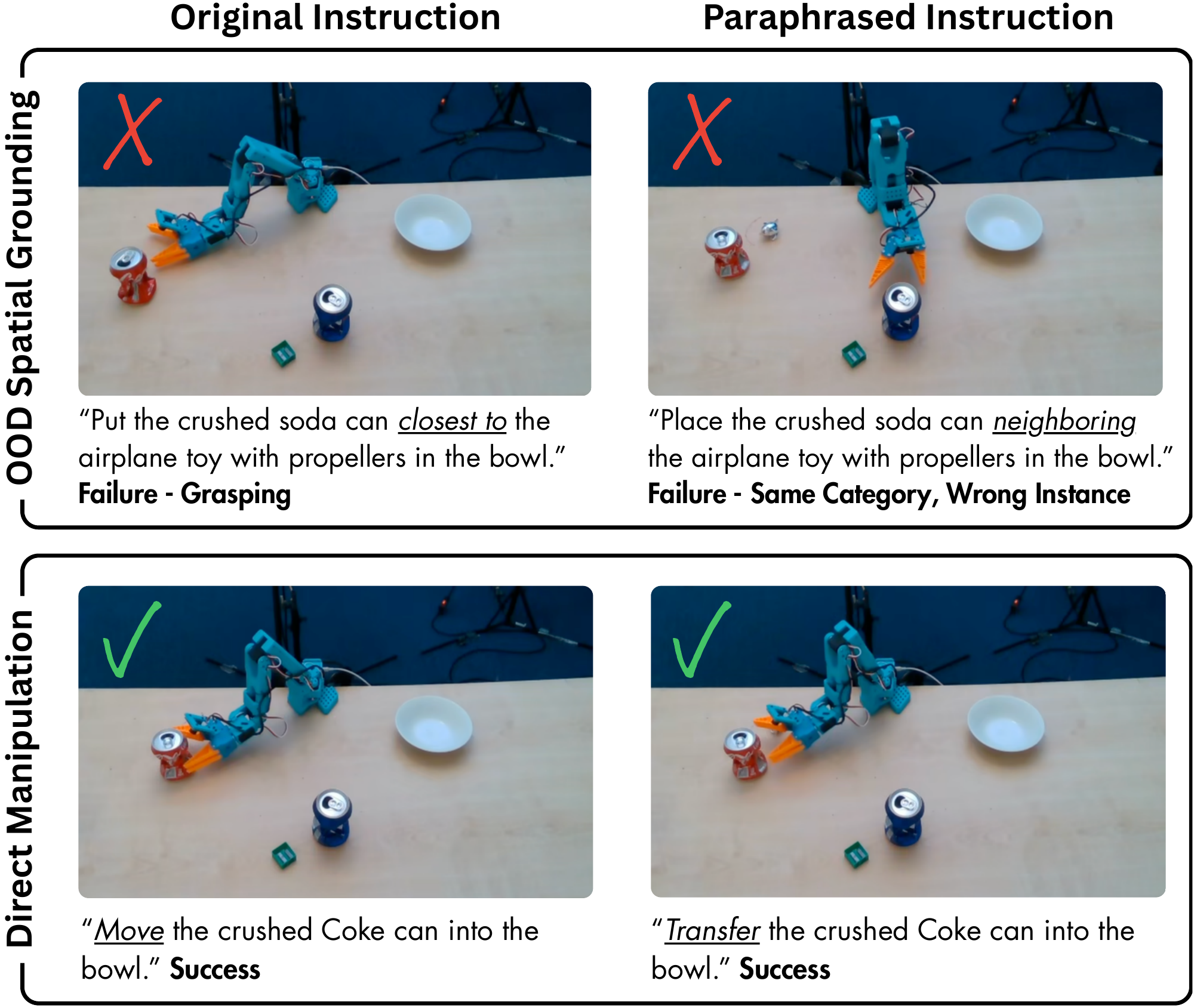

A policy might struggle with a particular wording rather than the underlying spatial requirement. The paraphrasing diagnostic tests this by restating both spatial and direct instructions while preserving their meaning, the scene, and the intended action.

On a 60-scene subset per policy, direct-manipulation performance remains substantially higher than OOD spatial grounding under both original and paraphrased instructions. Paraphrasing reduces spatial success for all three policies, while its effect on direct instructions varies by policy. The gap is therefore not explained by one particular phrasing.

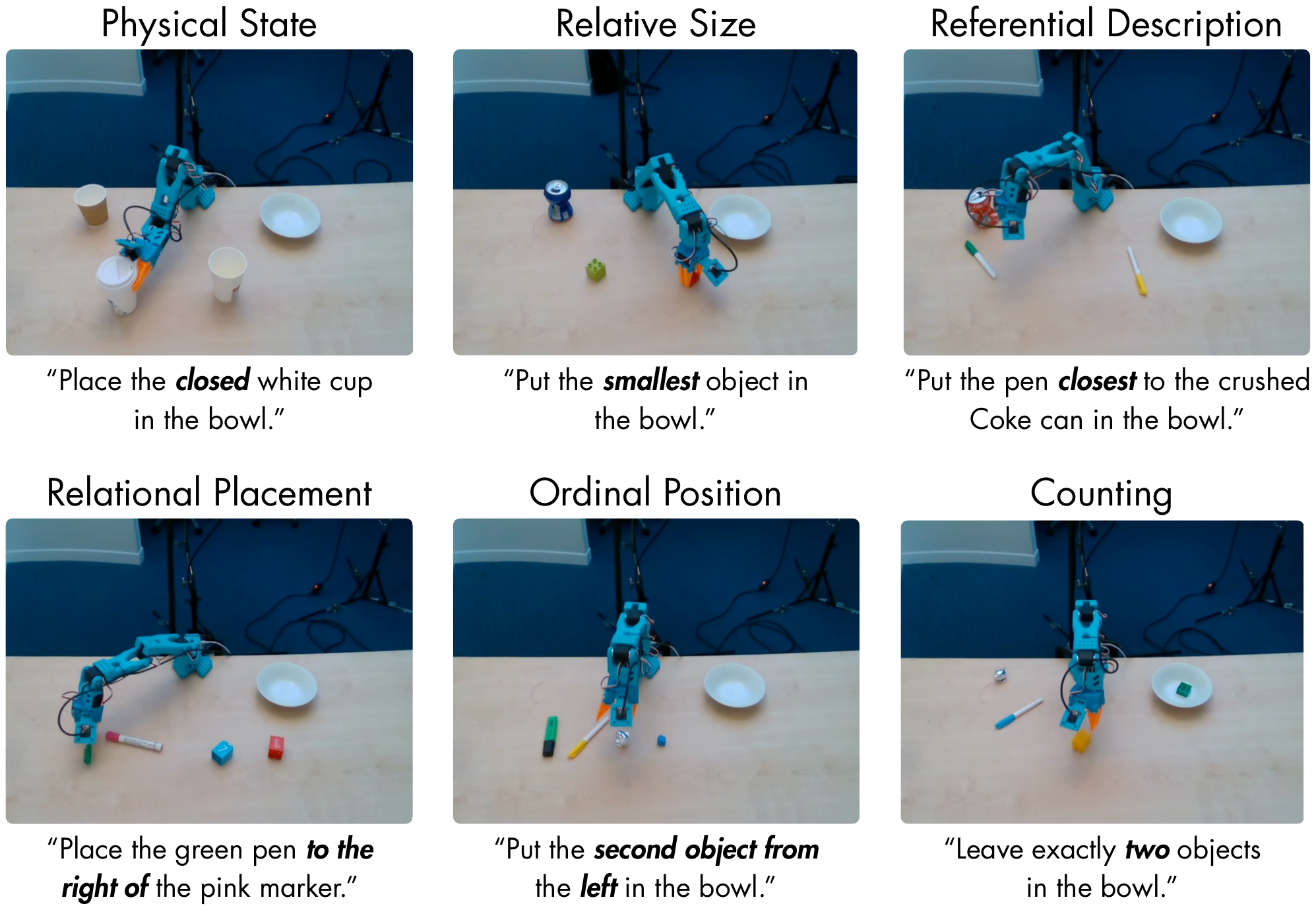

Spatial instructions can change which object to select, where to place it, or whether to act at all. Spa-Bench covers these decisions through six tasks spanning object attributes, relationships between objects, and scene-level order and quantities. The robot and broad pick-and-place behavior stay fixed, while the information needed to choose the correct response changes.

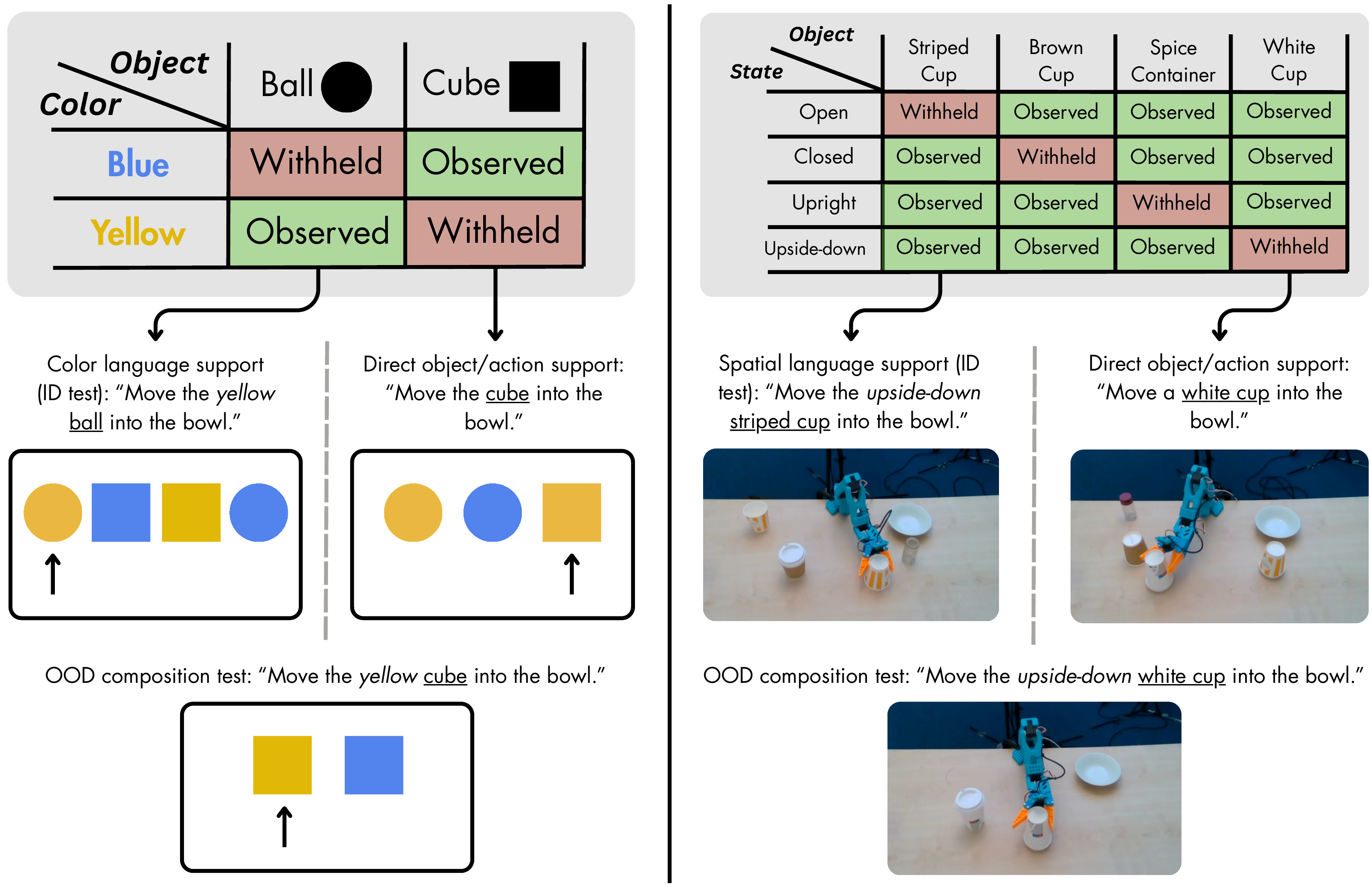

Spa-Bench tests generalization by withholding combinations, not their ingredients. Spatial concepts, objects, and required motions receive training support, but selected combinations are absent from spatially grounded training instructions. We organize these combinations into matrices: observed cells appear in spatial training, while withheld cells are reserved for evaluation.

In the toy example on the left, spatial training pairs yellow with ball and blue with cube. Direct instructions also provide manipulation support for the yellow cube. Evaluation then asks for the yellow cube through a color description: familiar color, familiar object, familiar motion, but a new spatial pairing.

For Object State on the right, a familiar state must identify the correct instance of a familiar object. The policy sees upside-down describe the striped cup and sees the white cup moved under direct instructions. Evaluation then asks it to select an upside-down white cup from an upright and an upside-down instance. The new element is the spatial state–object pairing, not the object or pick-and-place motion. We apply this construction across all six tasks.

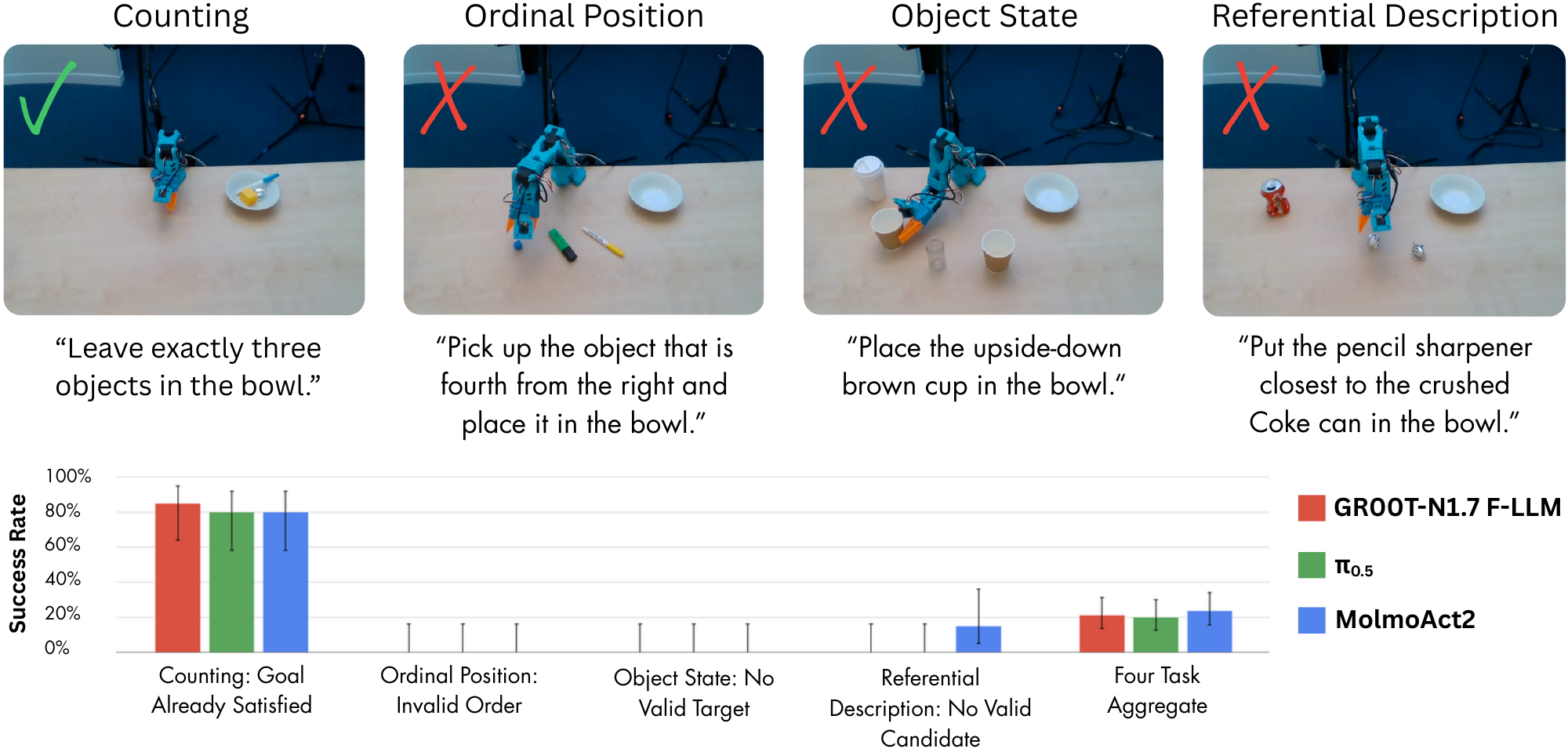

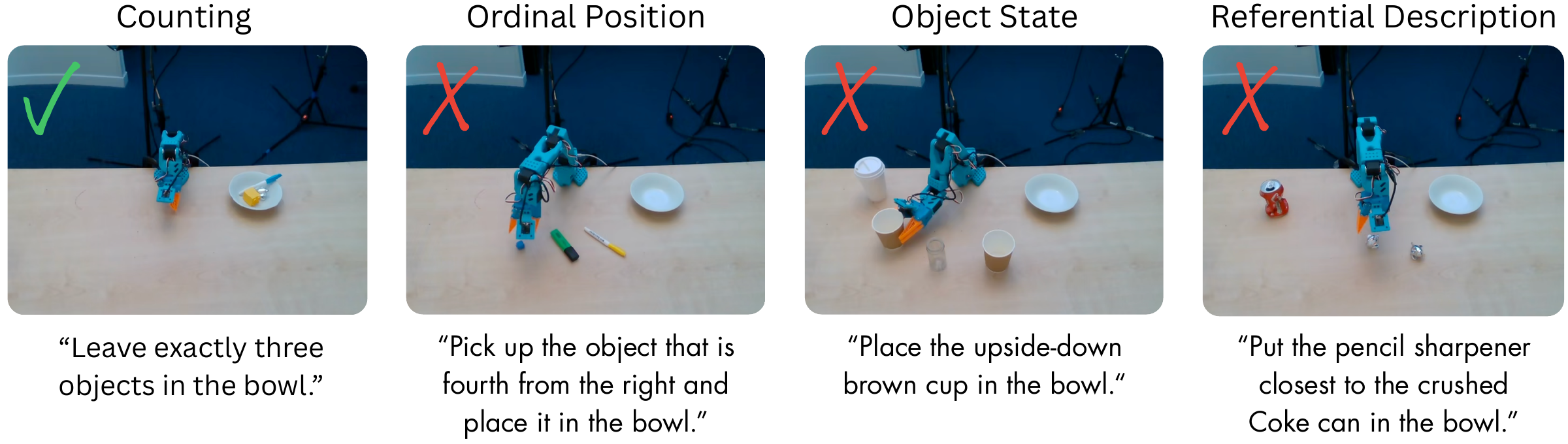

A spatial instruction does not always require movement: its goal may already be satisfied, or the scene may contain no valid target. The no-intervention diagnostic tests whether policies recognize these conditions and correctly withhold action.

Success reaches 80–85% when a Counting goal already holds, but falls to zero in Ordinal Position and Object State, with only 20–24% aggregate success across four tasks. The policies can remain still, but do not reliably decide when stillness is appropriate.

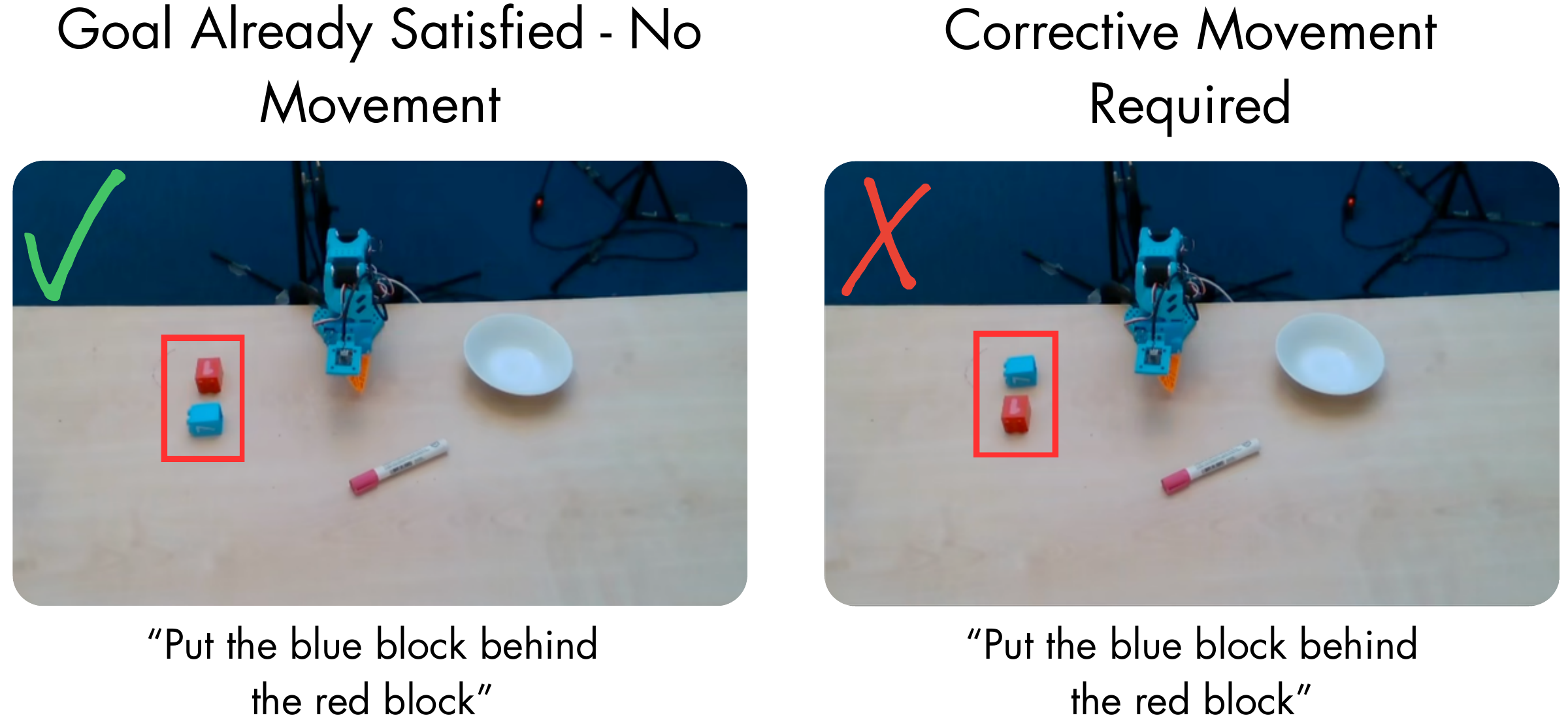

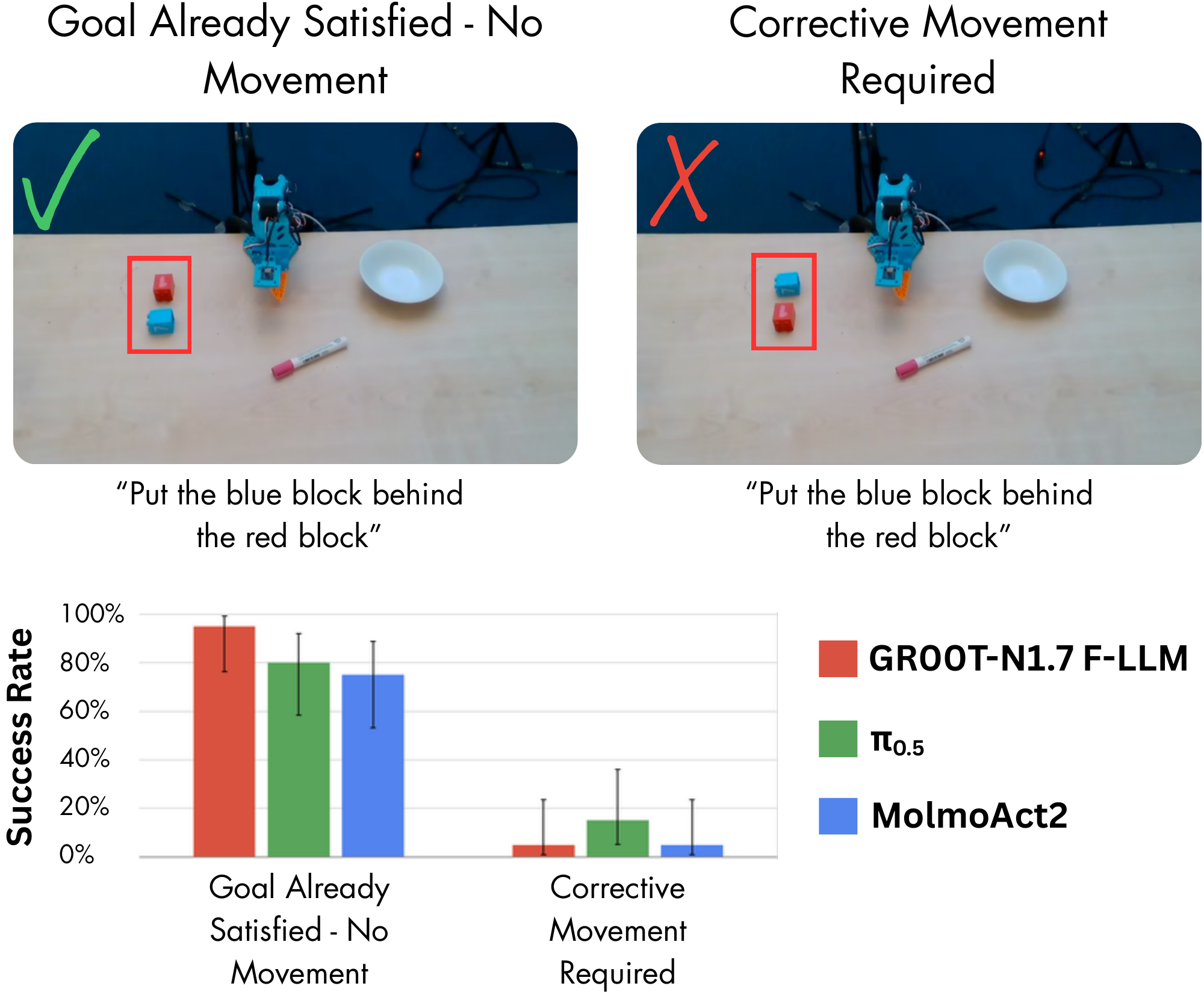

Remaining still can be correct by accident. To distinguish recognition of a satisfied goal from a general tendency not to move, we pair Relational Placement scenes where the requested relation already holds with scenes requiring correction. The same instruction should produce stillness in one scene and movement in the other.

Success reaches 75–95% when no movement is needed, but only 5–15% when correction is required. The policies often stay still whether the requested relation is already correct or not.

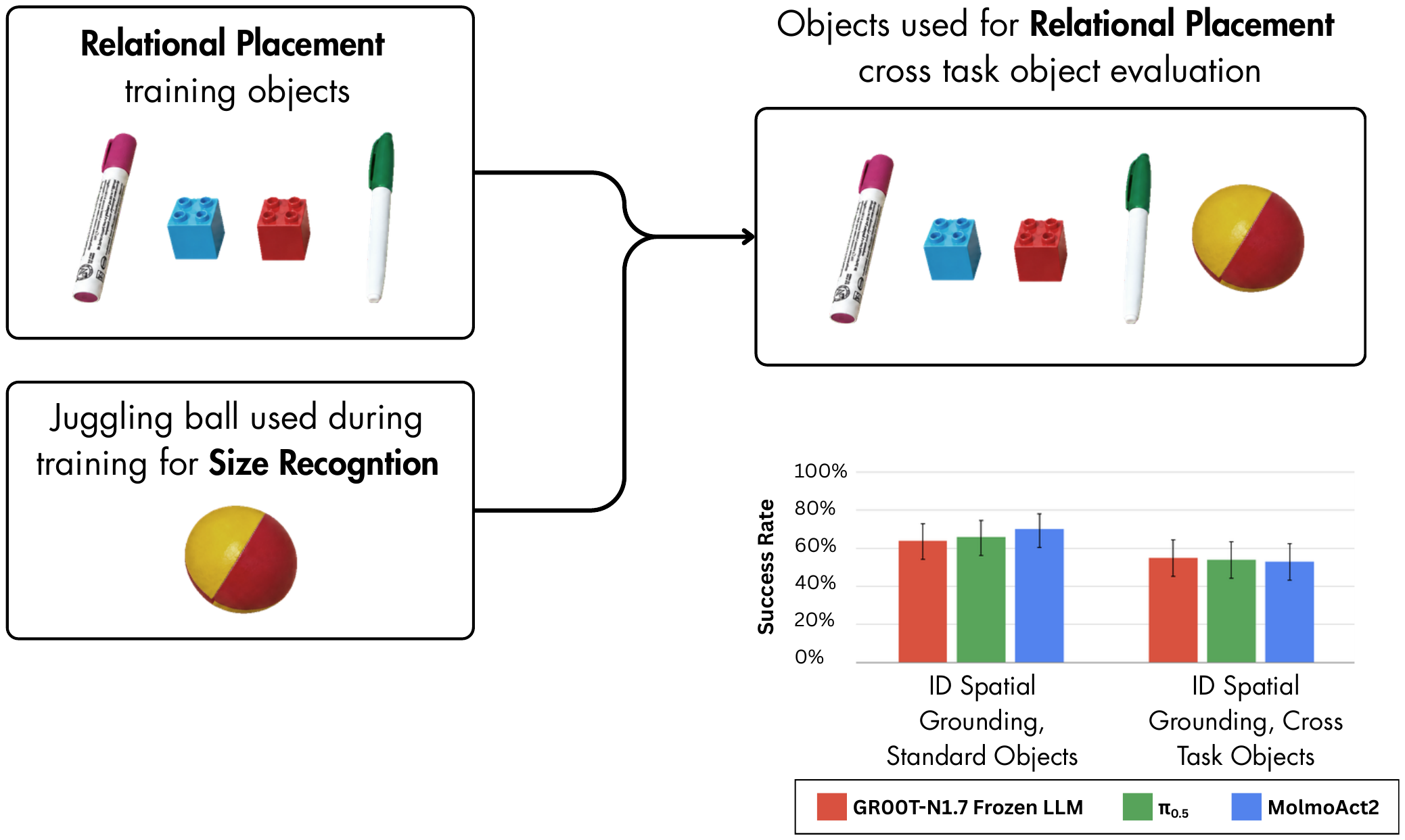

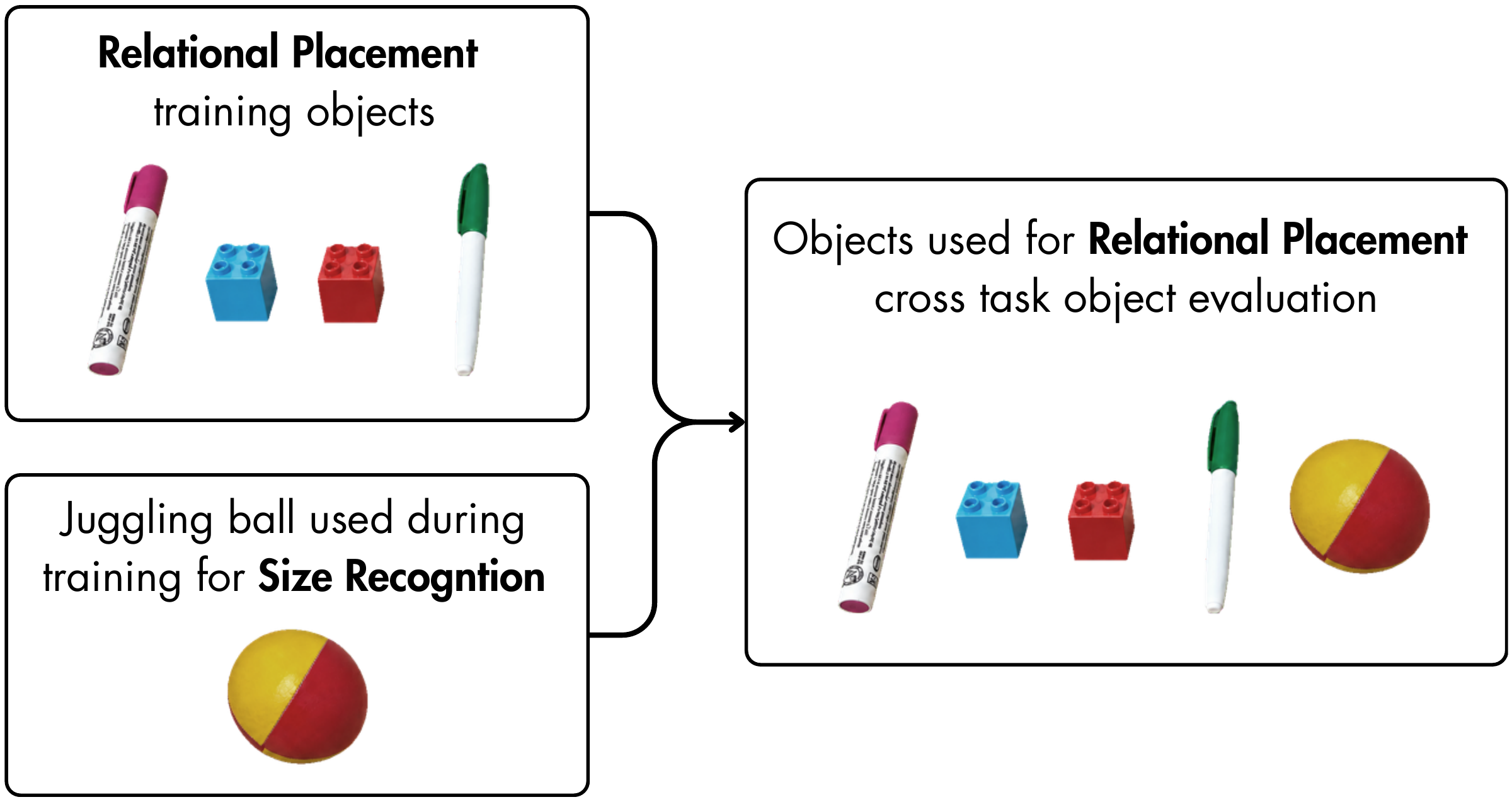

A policy may associate an object with the task or destination it saw during training. The cross-task-object diagnostic asks whether a familiar spatial behavior still works when an object normally used in another task is introduced.

Success falls for all three fully evaluated policies, suggesting sensitivity to learned object–task associations. Yet none defaults to placing the juggling ball in the bowl during Relational Placement, even though that was its only demonstrated goal during training. This suggests some transfer beyond a memorized object–goal association, without reliable success at the requested relation.

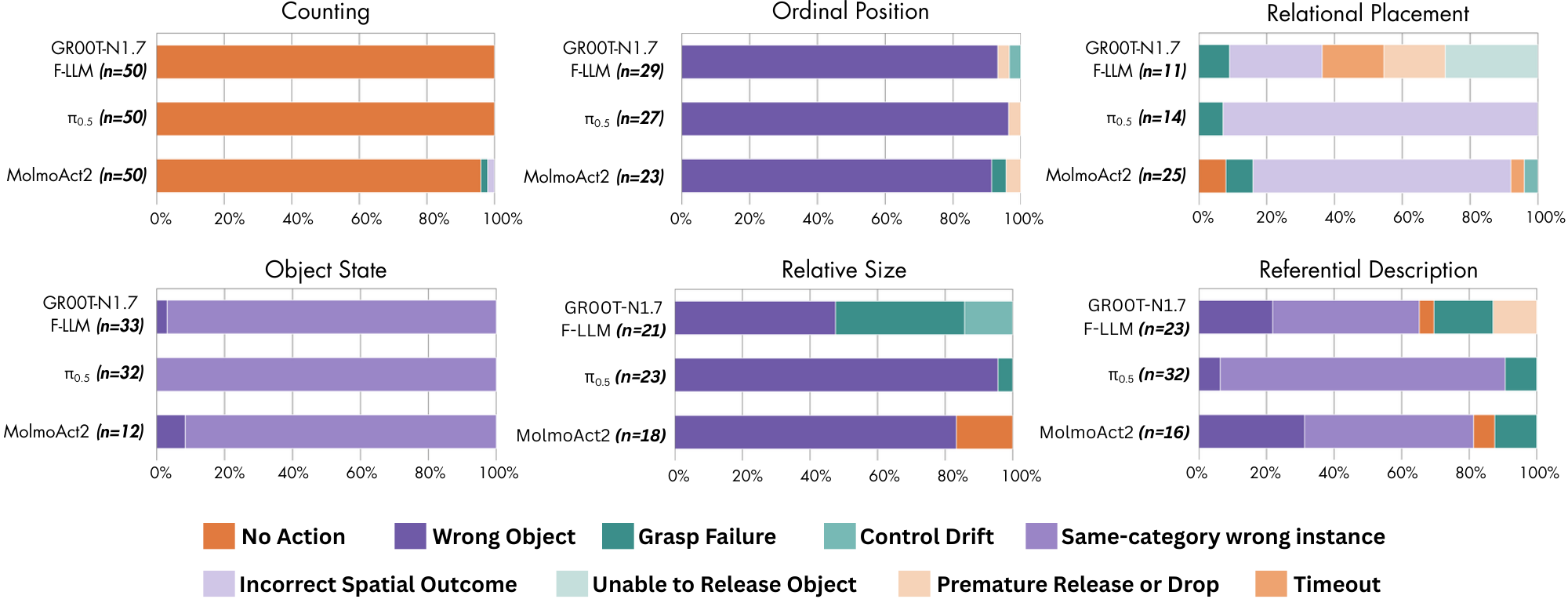

A success rate tells us whether a rollout completed the task, but not why it failed. We therefore assign each unsuccessful OOD rollout a primary failure mode. Each bar below shows the mix of errors among failed trials for a task and policy, rather than an overall failure rate.

The dominant error depends on the task. Counting failures are overwhelmingly no-action errors, Ordinal Position often selects the wrong object, Object State frequently chooses the wrong instance from the correct category, and Relational Placement often produces the wrong spatial outcome. There is no single failure mode that explains performance across Spa-Bench.

The release includes both training demonstrations and autonomous evaluation rollouts. Demonstrations provide examples of the task behaviors; rollouts record how fine-tuned policies respond to the benchmark scenes and diagnostic conditions.

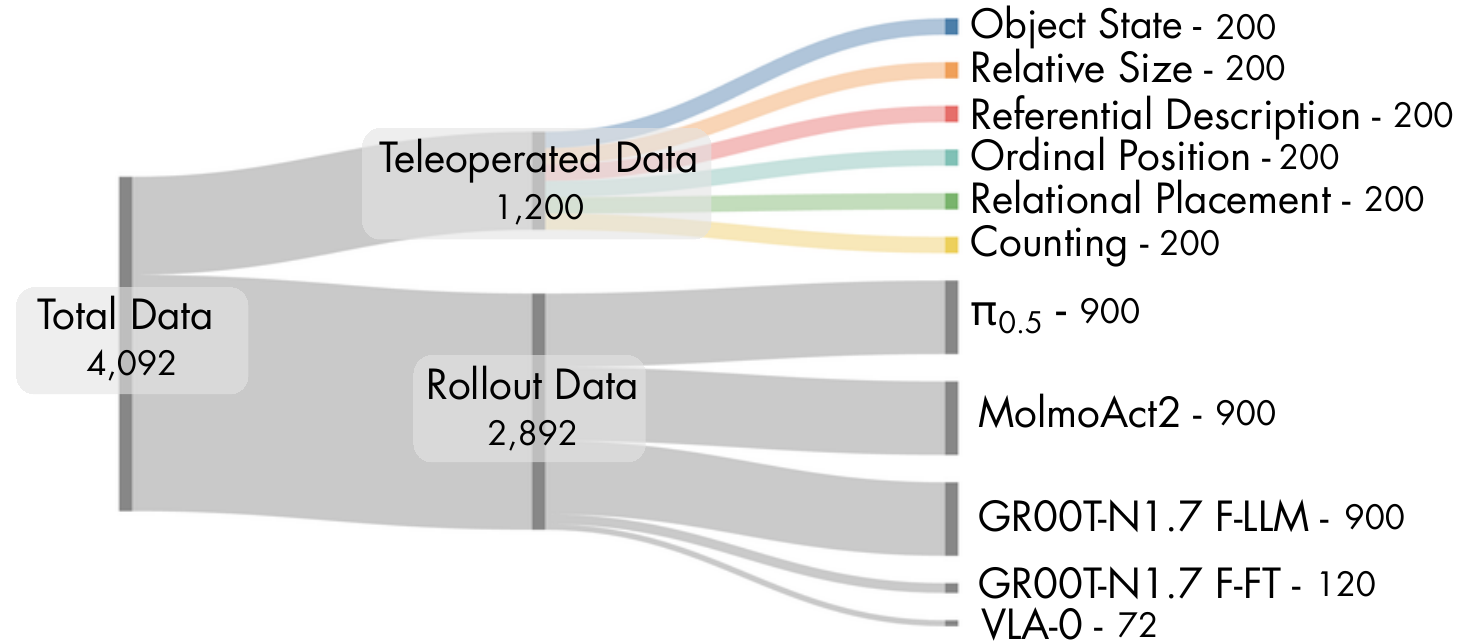

We release 4,092 real-robot episodes: 1,200 demonstrations across the six tasks and 2,892 evaluation rollouts from five policies. Three policies complete the full 900-rollout protocol; two contribute partial ID baselines.
